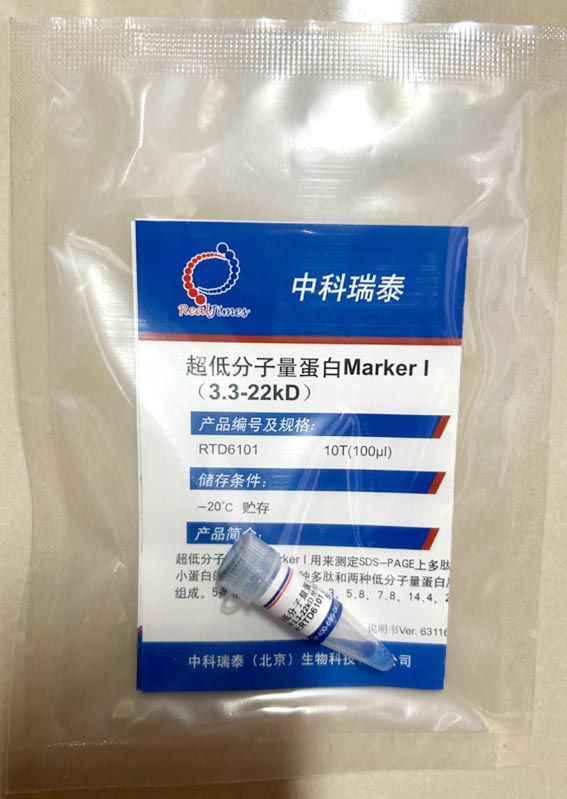

超低分子量蛋白質Marker I(3.3-22 kD)
Ultra Low Molecular Weight Protein Marker I
●產品編號及規格:
RTD6101 10T(100μl) 200元● 儲存條件:
-20℃保存,開封后有效期12個月。
● 產品簡介:

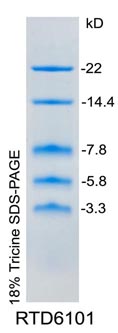

本產品包含3種多肽和2種低分子量蛋白質組成,分子量范圍為3.3kD-22kD??梢杂脕砼袛?/span> SDS-PAGE上多肽和小蛋白的分子量。
● 使用說明:
第一次收到該產品,常溫融化后,徹底混勻,離心快甩將溶液完全收集到管底。
一. 制膠:
I 配制分離膠
1.按照表一將不同體積的雙蒸水、40% PAA(19:1)、4×凝膠緩沖液(貨號:GB010)和乙二醇加入到小燒杯中混合。
2.加入10%APS和TEMED,立即混勻5-10秒,以使溶液充分混勻。
3.在凝膠模具中迅速灌入適量分離膠溶液,然后在分離膠溶液上輕輕覆蓋一層1 cm的無水乙醇,使凝膠表面保持平整。
4.靜置15-30分鐘,待分離膠和乙醇層之間出現一個清晰的界面表示凝膠已聚合。
表一 (一塊1 mm mini膠用量)
|
分離膠 |
濃縮膠 |
|
18%T, 5%C /5 ml |
5%T, 3.3%C/2 ml |
40% PAA(19:1) |
2.25 ml |
/ |
40% PAA (29:1) |
/ |
0.25 ml |
4×凝膠緩沖液 |
1.25 ml |
0.5 ml |
乙二醇(電泳級) |
1.5 ml |
/ |
ddH2O |
/ |
1.25ml |
10%APS |
50 μl |
20 μl |
TEMED |
5 μl |
2 μl |
II 配制濃縮膠
去除覆蓋在分離膠上的乙醇層,用濾紙將殘留乙醇吸去。
1.按照表一將不同體積的雙蒸水、40%PAA(29:1)和4×凝膠緩沖液加入到小燒杯中混合。
2.加入10%過硫酸銨和TEMED,立即混勻5-10秒,以使溶液充分混勻。
3.將梳子插入凝膠內,避免產生氣泡。
4.靜置30-60分鐘裝待凝膠聚合
二. 電泳:
1. 取Marker樣品,充分混勻后,
2. 電泳前,將10×陽極緩沖液(Cat No:AB080)和10×陰極緩沖液(Cat No:CB010)用蒸餾水稀釋成1×緩沖液備用。將電泳槽的外槽加入1×陽極緩沖液,內槽加入1×陰極緩沖液,輕柔拔出梳子,將Marker或蛋白樣品(已經過2×Tricine上樣緩沖液[Cat No:TP050]處理)加入點樣孔,參考下表進行電泳,至每條帶都清晰可見時停止電泳。整個電泳過程大約需要2-3個小時。
表二 多肽電泳條件
恒電壓 |
150V |
起始電流 |
60-75mA/板膠 |
結束電流 |
15-25mA/板膠 |
電泳時間 |
2.5-3小時 |
多肽電泳配套試劑
名稱 |
貨號 |
規格 |
RTD6120 |
10次 |
|
RTD6121 |
10次 |
|
RTD6122 |
25次 |
|
超低分子量蛋白Marker I(3.3-22 kD)(非預染) |
RTD6101 |
10次(100 μl) |
超低分子量蛋白Marker III(3.4-100 kD)(非預染) |
RTD6125 |
10次(50 μl) |
RTD6113 |
20次(100 μl) |
|
RTD6110 |
10次 (50 μl) |
|
RTD6145-01 |
10次 (50 μl) |
|
RTD6148 |
10次 (50 μl) |
|
AC1914-01 |
100ml |
|
AC2914-01 |
100ml |
|
PS080-01 |
100ml |
|
PI080-01 |
100ml |
|
GB010-100ml |
100ml |
|
TP050 |
10×1ml |
|
TP080 |
10×1ml |
|
RTD6202-02 |
500ml |
|
EA0582-02 |
100 ml |
|
GA1010-50ml |
50 ml |
|
CB010P |
500 ml |
|
AB080 |
250 ml |
|
CB010 |
100 ml |
